Ingressi
- DC Power via USB 5V
- Audio Input 3.5mm stereo jack connector
- Control Auto Pairing and connection
- Supported Bluetooth profiles: A2DP
- Supported Codec: SBC
- Audio Latency Up to 150 ms
Electric Performance – RF
- Bluetooth version: Fully Bluetooth 3.0 + EDR System in 2.4GHz ISM Band
- Frequency 2402~2480 MHz
- Frequency Hopping 1600 hops/seconds
- Channels 79 channels
- Transmit Power (Class 2) 4 dBm(Max)
- Range (free field):
- Up to 10 metres with Class 2 source.
- Up to 30 metres with Class 1 source.
Electrical Performance—audio RL (1KHz tone / A-weight / 2 Vrms)
- Audio Input Level (Max) 1.2V (rms)
- Frequency response 20~20 KHz (± 3 dB)
- Channel Separation Audio R/L 85 dB
- SNR (nominal, Audio RL) 70 dB
- total harmonic distortion 0.05% (nominal, Audio RL)
Physical
- Light Indicator 2 color LED (Blue/Red)
- Dimension 66 x 33 x 13 mm
- Weight: 30 grams.
- Operating temperature -10°C ~ +55°C
- Storage temperature -20°C ~ +60°C

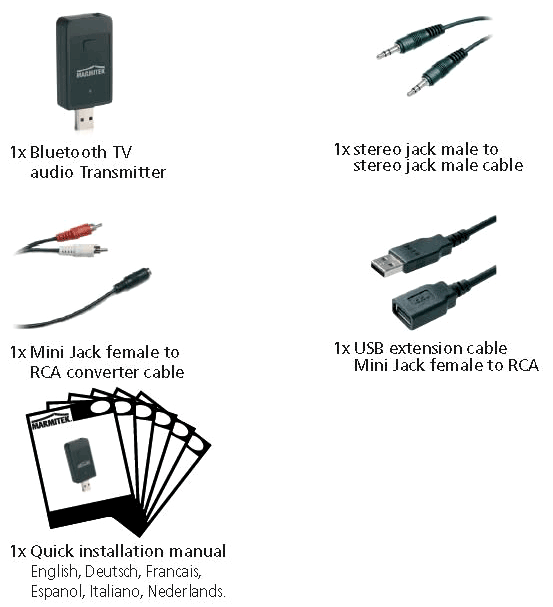

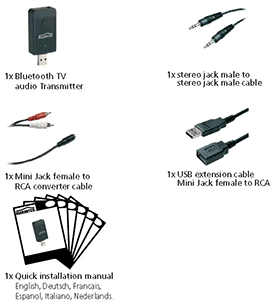

Accessories
- 3.5mm male > 3.5mm male, 1.8m audio cable
- Mini Jack female to RCA adapter cable.
- USB extension cable
- Velcro strip
