Trasmettitore audio digitale senza fili

Más Detalles

Specifiche tecniche:

• Supply voltage: 230VAC +10% -10% 50 Hz 5V 500mA by Mini USB
• Power Consumption: < 2W
• LEDs Power, Link
• AV RF transmission Digital
• Pairing Automatically
• RF data rate Up to 2 Mbps, GFSK modulation
• Audio frequency range 20Hz ~ 48KHz
• Audio in/output RCA and 3.5mm jack
• Audio Stereo
• Transmission Range Up to 40m free field, up to 10m through walls and ceilings
• RF frequency 2.4 GHz
• Ambient temperature: 0 ~ +50°C (Operation) -20°C tot +70°C (storage)
• Weight 20 grams
• Dimensions: 61 x 51 x 12 mm

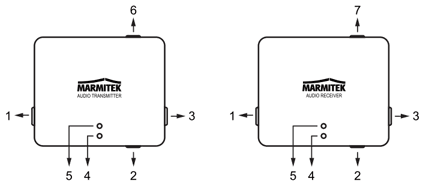

Collegamenti:

1. Mute
2. Mini USB port for power supply
3. On/off switch
4. Connection LED.
   • Lights up green if a connection is made.
   • Blinks if there is no audio or no connection.
   • Off if the transmitter/receiver is off.
5. Power LED.
   • Lights up red if the transmitter/receiver is receiving power.
6. Audio input (transmitter)
7. Audio output (receiver)

Contenuto della confezione:

• 1x Audio transmitter
• 1x Audio receiver
• 2x mini USB cable
• 1x Mini Jack to RCA cable
• 1x Mini Jack to Mini Jack cable
• 2x USB Energy saving switched mode power supply
• 1x User manual English, Deutsch, Francais, Espanol, Italiano, Nederlands
